Case Study: High-Purity Esterification with Continuous Heterogeneous Catalysis

Background

Homogeneous catalyzed esterification is a common process for synthesizing chemical products. However, when used for producing a high-value pharma additive, traditional batch methods face significant challenges related to chemical use, efficiency, and product quality.

The Problem: Pain Points in Traditional Esterification

The existing homogeneous catalyzed esterification process suffered from several critical limitations that hindered its commercial viability and product quality:

• Corrosive Chemicals: The process relied on corrosive chemicals, such as sulfuric acid, which required special handling and posed a safety risk.
• Long Batch Times: The lengthy duration of each batch cycle created capacity limitations and bottlenecked production.
• Catalyst Removal: The post-reaction removal of the acid catalyst was complex and often left behind unwanted metal impurities in the final product.
• Product Color Specification: It was difficult to achieve the required product color specifications while also maintaining high yields, with the two often being mutually exclusive. The product could not consistently meet the required BY5 standard.
• Capacity Limitations: The long batch cycle times directly restricted the overall production capacity, preventing flexible, high-volume manufacturing.

The Solution:

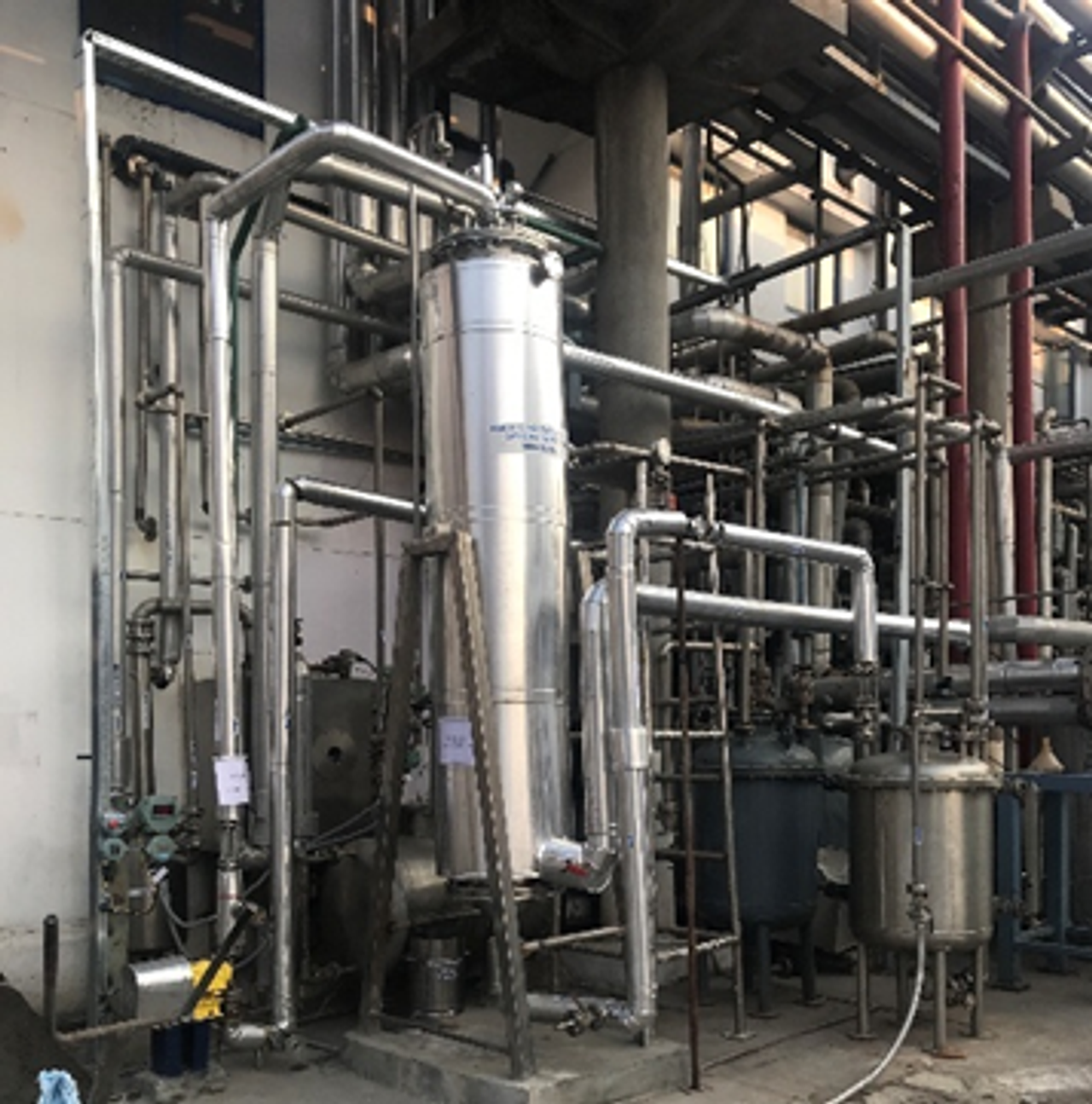

To overcome these challenges, a new continuous heterogeneous catalyzed esterification process was developed. This innovative approach replaced the corrosive sulfuric acid with a solid-phase, heterogeneous catalyst, which remains in the reactor and does not contaminate the product stream. This eliminated the need for a complex and impurity-prone catalyst removal step and subsequent neutralization.

The downstream process was also simplified significantly. Instead of harsh chemical separation, the isolation and purification were carried out using water as a benign "solvent," making the entire process more environmentally friendly and safer.

Results & Achievements

The implementation of the continuous heterogeneous catalysis system resulted in a dramatic improvement across all key performance indicators:

• Improved Product Quality: The product color improved significantly, consistently meeting the demanding BY5 standard.
• High Yield and Purity: The new process achieved impressive yields of >90% with a final product purity of >99.85%, far surpassing the performance of the previous batch process.
• Flexible Capacity: The shift to a continuous process allowed for high and flexible production capacity, enabling the commercial-scale production of hundreds of kilograms to meet market demand.
• Benign Process: The use of a heterogeneous catalyst and water for purification made the process inherently safer and more environmentally sound.

Conclusion

The successful transition to a continuous heterogeneous catalyzed esterification process demonstrates a superior method for high-purity chemical synthesis. By addressing fundamental issues in traditional batch manufacturing, this process delivered exceptional product quality, increased production capacity, and enhanced operational safety.
