Case Study: High-Purity Halogenation with Sravathi Flow Reactors
Background
Halogenation, specifically the addition of chlorine or bromine across a double bond, is a fundamental reaction in chemical synthesis. The traditional batch process is often slow, taking hours to achieve the desired yields, and suffers from capacity limitations and the wasteful loss of halogen gas.
The Problem: Challenges in Continuous Halogenation
Transitioning the halogenation process from a batch system to a continuous flow reactor presented several significant challenges that needed to be addressed for commercial viability:
- High Exothermicity: The reactions are highly exothermic, requiring a robust system for heat removal to prevent thermal runaway.
- Gas-Liquid Mixing: The process demands intense gas-liquid mixing to achieve complete conversion in a very short residence time.
- Thermal Management: The process fluid is poorly conducting, which can lead to the formation of localized hot spots if not managed effectively.
- Polymerization Risk: Uncontrolled hot spots have the potential to initiate unwanted polymerization of the substrate, leading to product loss.
- Stoichiometry Control: The process requires tight control of the mole ratio, kept very close to stoichiometry to maximize efficiency and minimize side reactions.
- Selectivity: Achieving high selectivity to the desired product while preventing the formation of unwanted isomers and byproducts is a key challenge.
The Solution:

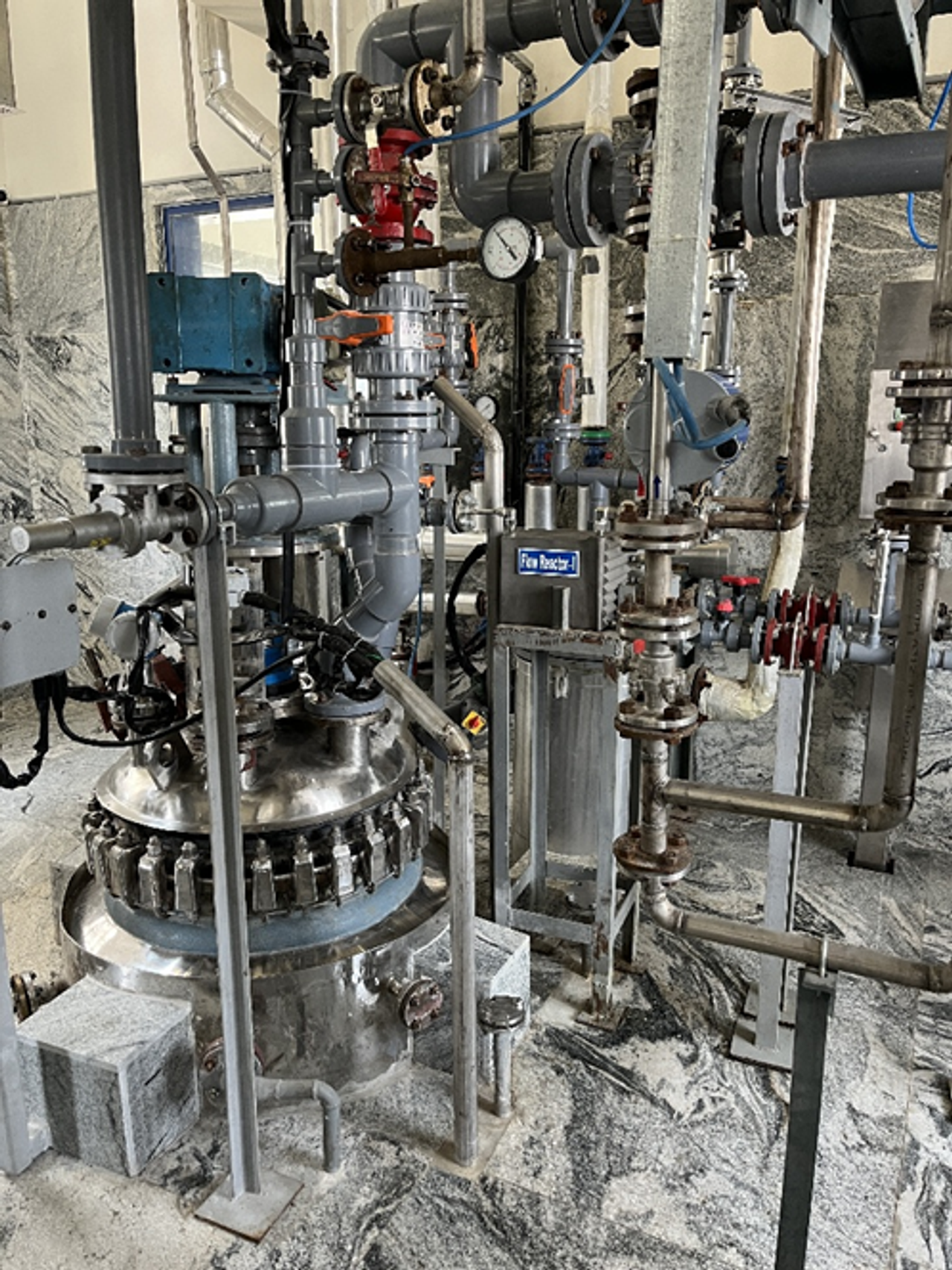

The Sravathi Flow Reactor was used to successfully convert this challenging batch process to a continuous flow system at a semi-commercial plant. By leveraging advanced fluid dynamics and the reactor's superior heat and mass transfer capabilities, all the critical issues were resolved.
The reactor's design enabled temperature control to within 5 degree celsius of the utility fluid throughout the reaction section, effectively eliminating hot spots and preventing polymerization. This precise control, combined with the intense mixing offered by the Sravathi Flow Reactor, ensured near-complete conversion in a significantly shorter timeframe than the batch process. The ability to tightly control the mole ratio and the reaction conditions also ensured high selectivity and minimal byproduct formation.
Results & Achievements
The implementation of the Sravathi Flow Reactor proved to be a resounding success. "What if" case studies were conducted using both pilot and commercial-scale reactors, which successfully established the scalability of the technology. The plant operated for several days without any upset or signs of corrosion, demonstrating the robust design and reliability of the Sravathi Flow Reactors. The new continuous process eliminated the previous capacity limitations and the loss of halogen gas to the headspace, leading to a much more efficient and safer operation.
Conclusion
The successful chlorination process using the Sravathi Flow Reactor provides a clear example of how continuous flow technology can overcome the most significant challenges in hazardous and complex chemical reactions. The Sravathi Flow Reactors delivered exceptional performance, resolving issues related to safety, heat management, and selectivity while enabling a scalable, reliable, and highly efficient manufacturing process.
